HUIYUE (DongGuan City) Automation Equipment Co., Ltd.
Description

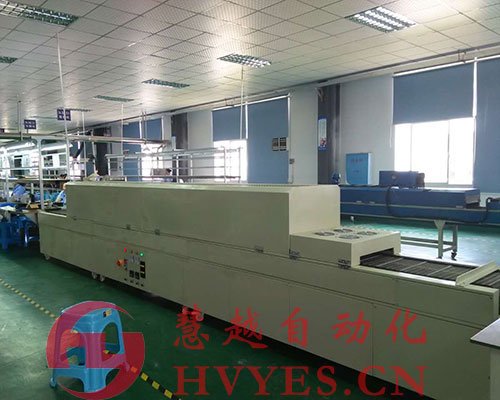

HY-K02 professional custom non-standard tunnel furnace - Features:
1. Roasted products inside and outside at the same time heating, inside and outside the temperature difference is small, no deformation, no discoloration, quality and stability;
2. Baking speed, high efficiency, can save time about 2-6 times, significantly shorten the production shipping cycle;
3. Can be local heating, energy waste less, saving more than 30%;
4. Because of the large amount of energy per unit area of transmission, so small size, the provincial space, the provincial construction costs;
5. Can be used with the production line connection, synchronous control, reduce the bad;
6. Temperature can be segmented control to meet product demand, high flexibility;
7. Forced exhaust device, solvent residue less, no danger, explosion, environmental protection;
8. The appearance of the chassis temperature close to the ambient temperature, the working environment comfortable and reduce energy waste;
9. Products in advance, after baking without standing, shorten the working hours, reduce the pollution;
10. The use of stepless temperature control system, product quality and stability.
HY-K02 professional custom non-standard tunnel furnace - parameters
Dimensions: L6000mm * W900mm * H1250mm.
Baked area size: L4800mm * W700mm * H150mm.
Material placed before the area 600mm, after 600mm, discharge area and the discharge area to install stainless steel plate.
The inlet outlet is equipped with a height adjustment plate, the adjustment range is 30-100mm.
Entry and exit mouth surface SUS201 = 1.5mm protection board.
Body section number: 2 section. 3 baked area, the first 250MM low temperature area, after 2 constant temperature area.
Furnace with 1.5mm / 1.2mm galvanized sheet bending welding outside the upper chamfer.
Fuselage with Fang Tong production, sub-portfolio design structure, easy to disassemble and install.
The bottom of the installation of adjustable footrest cup, easy to move and positioning, adjust the height and level.
Fuselage table machine baking powder (spray) color for high light gray (other colors to provide model optional).
Dustproof, safe, beautiful, buckle structure installation, easy maintenance and combination.
