Description
HY-K026 stainless steel conveyor belt drying furnace
HY-K026 stainless steel conveyor belt drying furnace - parameters
(1) Overall dimensions: L6000W900H1250mm.
(2) Baking area size: L4800mm * W700mm * H150mm. Material placed before the area 600mm, after 600mm, discharge area and the discharge area to install stainless steel plate. The inlet outlet is equipped with a height adjustment plate, the adjustment range is 30-100mm.
(3) access to the mouth of the surface protection SUS201 = 1.5mm protection board.
(4) the number of sub-section of the body: 2. 3 sub-area, the first 250MM low temperature area, after 2 constant temperature area.
(5) Furnace with 1.5mm / 1.2mm galvanized sheet bending welding outside the upper chamfer.
(6) fuselage using Fang Tong production, sub-portfolio design structure, easy to disassemble and install.
(7) the bottom of the installation of adjustable caster cup, easy to move and positioning, adjust the height and level.
(8) body table machine baking powder (spray) color for high light gray (other colors provide model optional).
(9) dustproof, safe, beautiful, buckle structure installation, easy maintenance and combination.
(10) The sealing of the furnace body adopts imported silica gel.
(11) The inner wall of the furnace is 1.2mm SUS201 stainless steel, and each infrared lamp is equipped with stainless steel reflector.

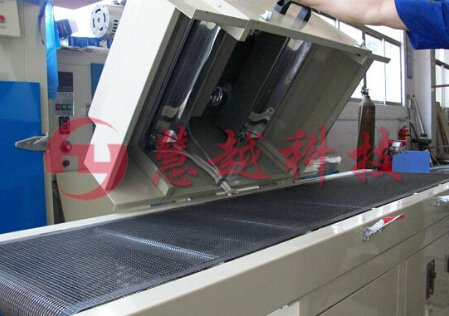

(12) Furnace side hinge the other side of the handle, easy maintenance.
(13) Power: 1 / 2P Taiwan Dongyuan inverter and 1 / 2P motor.
(14) conveying speed 0.2 ~ 3m / min (frequency adjustment)
(15) reducer: 1200: 1 a reducer, speed control mode: frequency control, can be precise speed.
(16) transport carrier: transport bandwidth of 700mm with 30 * 15 stainless steel flat, spacing 46mm. 6-point double-pitch high-carbon steel chain
(17) conveyor sprocket with tooth surface carbon standard sprocket, the main shaft cold drawn steel system.
(18) Conveyor head with a screw to adjust the mesh belt tightness, beautiful and durable.
HY-K026 stainless steel mesh belt oven - features
1, infrared lamp: the outer surface of the vacuum gold-plated infrared film, the length can be set in accordance with customer requirements. Continuous working life of more than 6000 hours.
2, high temperature line: 62,42 GB high temperature line.
3, a unique built-in fan design, safe and reliable, clean cavity clean.
4, the product is designed for high frequency, low frequency, transformer and metal plastic products baking.
5, automatic temperature control, than the traditional vertical oven time-saving 2-5 times, saving more than 30%, high efficiency.
HY-K026 stainless steel conveyor belt drying furnace - parameters
(1) Overall dimensions: L6000W900H1250mm.
(2) Baking area size: L4800mm * W700mm * H150mm. Material placed before the area 600mm, after 600mm, discharge area and the discharge area to install stainless steel plate. The inlet outlet is equipped with a height adjustment plate, the adjustment range is 30-100mm.
(3) access to the mouth of the surface protection SUS201 = 1.5mm protection board.
(4) the number of sub-section of the body: 2. 3 sub-area, the first 250MM low temperature area, after 2 constant temperature area.
(5) Furnace with 1.5mm / 1.2mm galvanized sheet bending welding outside the upper chamfer.
(6) fuselage using Fang Tong production, sub-portfolio design structure, easy to disassemble and install.
(7) the bottom of the installation of adjustable caster cup, easy to move and positioning, adjust the height and level.
(8) body table machine baking powder (spray) color for high light gray (other colors provide model optional).
(9) dustproof, safe, beautiful, buckle structure installation, easy maintenance and combination.
(10) The sealing of the furnace body adopts imported silica gel.
(11) The inner wall of the furnace is 1.2mm SUS201 stainless steel, and each infrared lamp is equipped with stainless steel reflector.
(12) Furnace side hinge the other side of the handle, easy maintenance.
(13) Power: 1 / 2P Taiwan Dongyuan inverter and 1 / 2P motor.
(14) conveying speed 0.2 ~ 3m / min (frequency adjustment)
(15) reducer: 1200: 1 a reducer, speed control mode: frequency control, can be precise speed.
(16) transport carrier: transport bandwidth of 700mm with 30 * 15 stainless steel flat, spacing 46mm. 6-point double-pitch high-carbon steel chain
(17) conveyor sprocket with tooth surface carbon standard sprocket, the main shaft cold drawn steel system.
(18) Conveyor head with a screw to adjust the mesh belt tightness, beautiful and durable.
HY-K026 stainless steel mesh belt oven - features
1, infrared lamp: the outer surface of the vacuum gold-plated infrared film, the length can be set in accordance with customer requirements. Continuous working life of more than 6000 hours.
2, high temperature line: 62,42 GB high temperature line.
3, a unique built-in fan design, safe and reliable, clean cavity clean.
4, the product is designed for high frequency, low frequency, transformer and metal plastic products baking.
5, automatic temperature control, than the traditional vertical oven time-saving 2-5 times, saving more than 30%, high efficiency.
