Xin Ling Electric Co., Ltd. Xia total in the end of September 2015 order a Division I automatic double cylinder vacuum impregnation machine, in the October 12 formal delivery Xin Ling Electric Co., Ltd. production and use, our HY- Z03 Double-cylinder vacuum impregnation machine HY-Z03 Double-cylinder vacuum impregnation machine is suitable for high-frequency, low-frequency transformers, inductance coils, motors, inductors, rectifiers, circuit boards, metal castings and C-core varnish processing equipment. Here we look at the development process of electrical Xin Ling:

Zhejiang Xin Ling Electric Co., Ltd. is located in "China's low-voltage electrical appliances are" in Zhejiang Liu, is a collection of scientific research, development, production and sales as one of the regional joint-stock enterprises.

       The company's industrial park covers an area of 63,500 square meters, construction area of 72,800 square meters, with a number of joint ventures and holding enterprises, its "Xin Ling", "Yan Tai", "GKG" and other brands in the industry favored, Ling "trademark has been the judiciary as" well-known trademarks in China ", relay products have been rated as" national Mianjian products. " The company's quality system has been with the international standards, in the same industry enterprises in the first through the ISO9001: 2000 international quality management system and the Netherlands RVA certification, product access to CE, 3C, UL, TUV and other international certification.

With the development of society, we will work harder to provide customers with reliable, stable products and a full range of professional services. Our goal is: to become a trusted user, with first-class scientific research and development capabilities of high-tech enterprises, and always maintain a pragmatic and innovative, determined to make progress in the spirit, to create a hundred years Xin Ling and make unremitting efforts!

       Xin Ling Electric in Zhejiang has more than 50 stores outlets, the main products are relays, instrumentation, motor protection, circuit breakers, soft starters and other products, after years of operation, Xin Ling in large and medium-sized cities in the service Center and logistics center for the backbone of the sales service system has shown a strong support, all over the country more than 280 cities in sales and service network to meet the diverse needs of customers. Now Xin Ling Electric increased automatic vacuum impregnation machine, can greatly enhance production efficiency, but also can greatly improve the aesthetic effect of its products, making the self-produced high-frequency transformer Xin Ling no trace of traces of water, where the following I come Take a look at Xin Ling electrical work product images and work video:



Xinling Electric customer on-site double cylinder impregnation machine video?     https://www.youtube.com/watch?v=cdAD00Qoh7g



Shenzhen Fengguan electronic double cylinder impregnation machine video?       https://www.youtube.com/watch?v=QB5VospFUAw



Xuzhou Keya Motor Double Cylinder Immersion Machine Video?         https://www.youtube.com/watch?v=pMjzdsAj-EA



Twin cylinder impregnation machine production completion video?        https://www.youtube.com/watch?v=Mj7Kofh8Q24

Single cylinder impregnation machine production completion video?        https://www.youtube.com/watch?v=DwYf4SPAJUg

Fully automatic single cylinder vacuum impregnation machine video?        https://www.youtube.com/watch?v=84gSztja_Tc

SMD inductor single cylinder vacuum impregnation machine video?          https://www.youtube.com/watch?v=ERmkd4NDTQg

Circuit board double cylinder vacuum impregnation machine video?  1.          https://www.youtube.com/watch?v=B4Qk5r795X8

                                                                                               2.         https://www.youtube.com/watch?v=Qg93Zcc0GEg

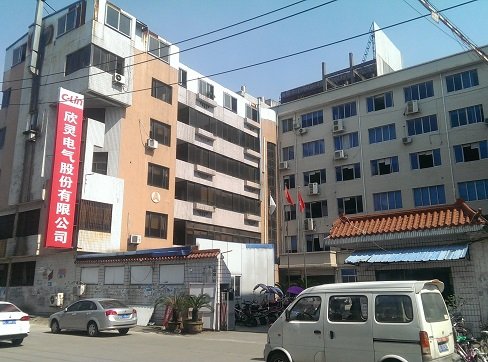

Zhejiang Yan Ling electrical outlets

Yan Ling electrical production site

Yanling electrical production site 2

Yanling electrical production site 3

Yan Ling electrical products

That we take a look at our HY-Z03 double-cylinder automatic vacuum impregnation machine technical parameters and details of high-definition picture:

HY-Z03 double-cylinder automatic vacuum impregnation machine size size

The cylinder volume: L710 * W540 * H300mm

Subdisk size: L660 * W530 * H105mm

Single cylinder size: L950 * W660 * H1160mm

Controller dimensions: L500 * W540 * H1300mm

Baptist machine: about 2600x wide and 660x high 1300mm (about 450KG)

Standard impregnation machine height: about 80mm (can be customized according to customer requirements height)

Basic equipment requirements

1, the input: AC 380V 3-phase 4-wire 50Hz;
2, power: 1HP;
3, the use of Yade passenger cylinder fast switch cover. Cover with silicone rubber seal around, fast seal;
4, the use of stepper motor drive precision ball screw drive sub-tank lift-type impregnation, can be preset height; can be preset height (sub-groove maximum stroke 60mm; displacement accuracy ± 0.05mm);
5 ,. Spiral lift bearing force, high control accuracy, PIN will not stick to the water legislation, not the second tin;
6, the whole Chinese PLC control, can be preset a variety of impregnation mode, intelligent vacuum, to no bubble where the water, impregnation effect beautiful;
7, automatic switch cover, the second automatic vacuum, saving time and effort, environmental protection, energy saving, single-person multi-machine operation can be achieved;
8, the overall use of 10MM steel plate production. Double-glass observation window can always view the soaking situation;

Function Description

1, impregnation time can be set;
2, with a timer alarm, motor overload protection and phase protection;
3, exhaust filter recovery, with environmental protection, recycling double-effect function;
4, the product storage of 500;

Body materials and electrical materials

1, the main part of the A3 material, the surface spray green Chouwen paint (bright white and dark gray can choose);
2, some accessories using cold rolling plate;
3, all electrical appliances used Chint brand;
4, all Chinese PLC controller operation, the controller parameter settings, click: vacuum impregnation machine PLC controller parameter setting screen;

HY-Z03 double-cylinder automatic vacuum impregnation machine

Air filter: Remove the liquid water, liquid oil, compressed air will be filtered through the filter to remove those tiny solid particles

15-pin connector: make the circuit connection more convenient (respectively, power switch, driver, stepper motor, control sensor)

Double glass observation window: 10 mm thickness of tempered glass (with sealing ring)

Stainless steel pressure gauge: for corrosive gas environment, can detect strong corrosive medium pressure or vacuum (range 0.01 to 0.1MPa)

Environmentally friendly low-power bulbs: bulb long life, low standby power, energy saving

Bulb connection: three-port connection, easy to connect

Zhengtai brand relays: Zhejiang Zhengtai Electric, China's first low-voltage electrical industry-based A-share listed companies (big brands trustworthy)

Baptist controller: All Chinese PLC control, can be preset a variety of impregnation mode, intelligent vacuum, to achieve a bubble-free water, impregnated with beautiful effect
