Manufacturers supply transformer coil automatic winding machine
Configuration requirements:
Number of spindles |
8 /12 / 16 |
Spindle speed (rpm) |
10000 /12000 / 12000 |
Spindle spacing (mm) |
45-100 /45-70 / 35 |
Spindle servo motor power (W) |
1500/3000 (Optional) |
Guide pin moves servo motor power(W) |
X:200, Y:200, Z:400 |
Quick clamp interface inner diameter (mm) |
Standard: 10 Special: 12 |
Applicable wire diameter (mm) |
0.02-0.4mm (Additional air pressure scissors and replacement motor can be wound up to 0.4mm or more) |
Winding maximum outer diameter of the skeleton (mm) |
60/90;35/60; |
Guide rod movement amount (mm) |
X:110, Y:150, Z:70 |
Needle bar moving speed (mm/sec) |
200 |
voltage (V) |
Single item 220V 50/60HZ |
Fire power (W) |
3000W/4500W |
Compressed air pressure (Mpa) |
0.45-0.55 |
Machine body size (mm) |
1300(L)x1000(W)x1400(H) |
Machine weight (kg) |
600 /640 / 700 |
Performance characteristics:
1.Teach interactive touch, human interface, easy to control, Chinese culture program management, easy to learn and understand, five minutes to get started, no keyboard and external power supply,
Direct input, short tuning time.
2. Self-diagnosis function, quick maintenance.
3. Four-axis NC tween, spirally wrapped.
4. CNC server driver, precise positioning.
5. Quick-change shaft core fixture.
6. Four angles wrapped around the PIN foot function.
7. High speed and high precision to improve the quality and quality of winding.
8. Can be operated stand-alone or with automated production.
9. Can be used with automatic exchange materials, scissors and pneumatic twisting equipment (special equipment).

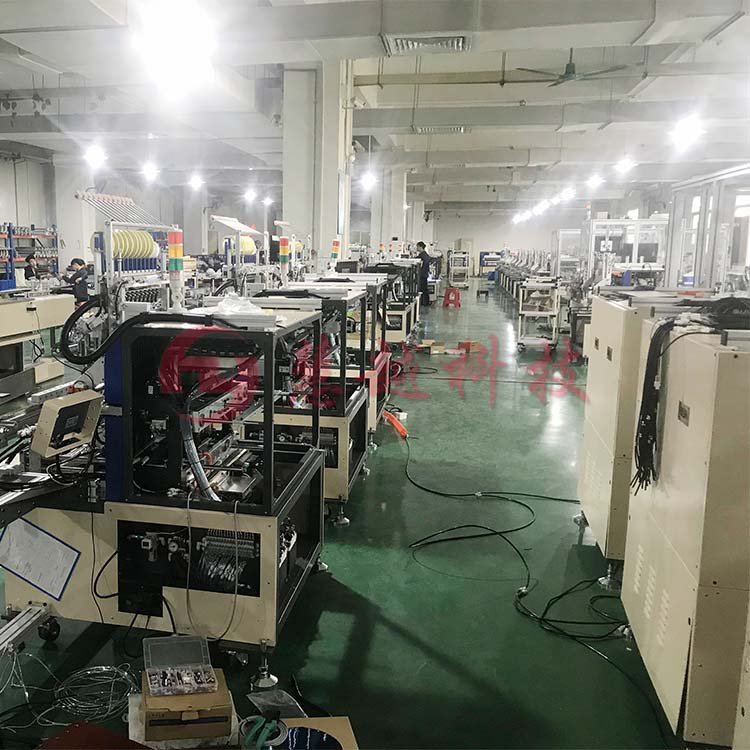

16-axis automatic winding machine Enameled wire automatic winding machine Power transformer winding machine
Ignition coils, relays, inductor coils, solenoid valve coils, coil windings for stepper motor coils, and fully automated production lines.
