Model HY-Z03 automatic vacuum varnish impregnation machine manual

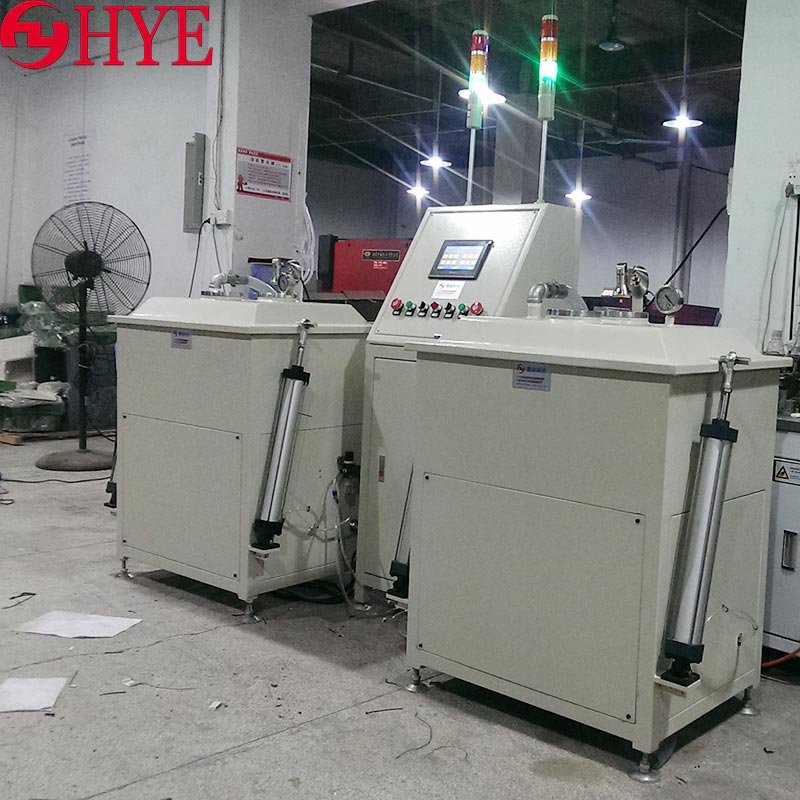

Our model HY-Z03 automatic vacuum impregnation machine uses 50KG hydraulic rod to support the top cover. The top cover is sealed with silicone rubber and the cover is quickly clamped. The stepper motor drives the precision ball screw with the moving slot lifting type impregnation, and the lifting height can be preset (the maximum stroke of the sub-slot is 60mm; the displacement accuracy is ±0.05mm). The screw jack has high bearing capacity and high control precision. The PIN will not stick to the varnish, and there is no need for secondary tin plating. PLC controller control, can preset a variety of impregnation mode, with timely, appropriate elimination of bubble function; automatic switch cover, secondary automatic vacuum, save time and effort, environmental protection, energy saving, single-person multi-machine operation. The groove is made entirely of 10MM steel plate. Double glass observation window for viewing immersion at any time
The vacuum impregnation machine is a dip coating treatment equipment suitable for high frequency and low frequency transformers, inductor coils, motors, inductors, rectifiers, metal castings and C-type iron cores. It has improved mechanical strength, insulation strength and moisture resistance of the coil. Anti-mildew, noise reduction and other functions; resin filling of various metal film capacitors, electrolytic capacitors, vacuum degassing process of medium/small resin crafts, and vacuum degassing process of various plastic PU raw materials. Can improve product quality, reduce production costs, save efficiency and protect the environment. Vacuum impregnation machines generally have dozens of types such as assembly type, bulk type, square cylinder type, single machine multi-cylinder type, multi-machine single cylinder type and multi-machine multi-cylinder type.
